Description

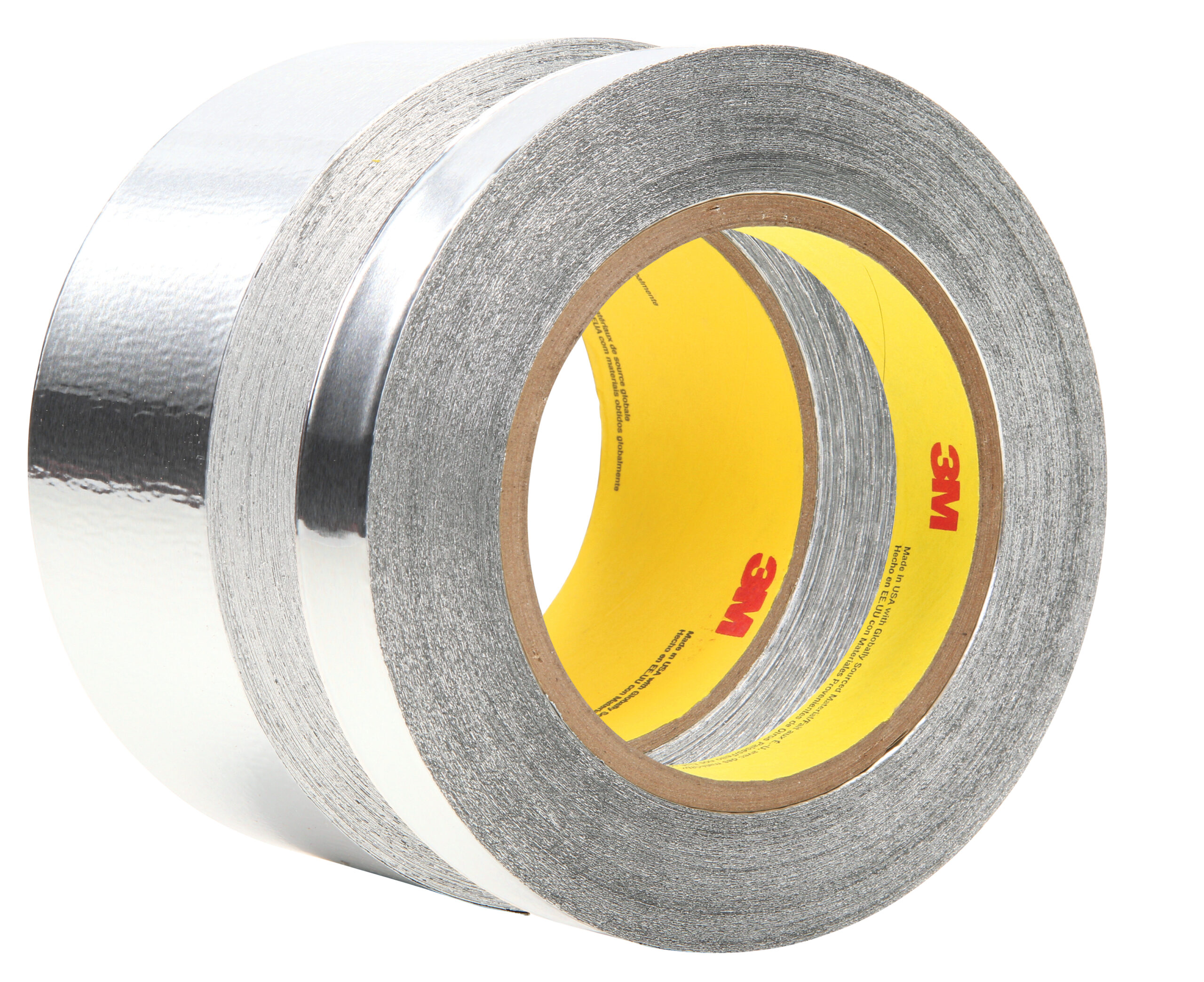

3M™ VentureClad™ Insulation Jacketing Tape 1577CW is an all-weather option for various jacketing applications. It offers superior resistance to weathering, mold, UV and extreme environmental conditions. This silver aluminum multi-layered laminate tape is designed to provide zero permeability and act as a vapor barrier for insulation cladding and jacketing applications.
- Adhesive Type-Acrylic
- Application-Wiring Harness Attachment
- Backing (Carrier) Thickness (Imperial)-4 mil
- Backing (Carrier) Thickness (Metric)-10 mm
- Backing Material- Multi-layered laminate
- Brands-VentureClad™
- Elongation at Break-80.0 %
- Industries- Commercial
- Maximum Operating Temperature (Celsius)-149 ℃
- Maximum Operating Temperature (Fahrenheit)-300 ℉
- Minimum Operating Temperature (Celsius)- -70 ℃
- Minimum Operating Temperature (Fahrenheit)- -94 ℉
- Overall Length (Imperial)- 50 yd
- Overall Length (Metric)- 45.7 m
- Overall Width (Imperial)- 23 in, 46 in, 35.5 in
- Overall Width (Metric)- 584.2 mm, 1,168.4 mm, 901.7 mm
- Primary Liner- Polycoated Kraft
- Product Color-Silver
- Shelf Life-12 Month
- Tensile Strength (Imperial)-69.0 lb/in
- Tensile Strength (Metric)-140 N/100mm
- Total Tape Thickness without Liner (Imperial)-6 mil
- Total Tape Thickness without Liner (Metric)-0.16 mm
